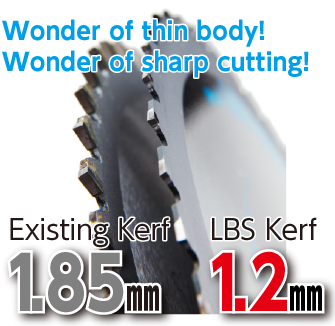

TCT saw blade with Thinnest kerf

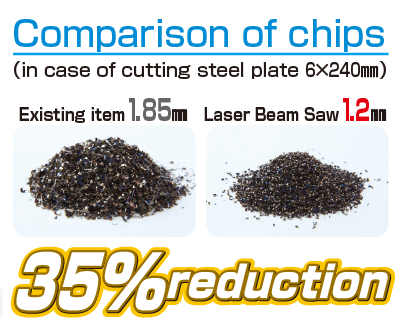

With maximizing the feature of cermet, which is strong against wear, the cutting life has been improved. The ultra thin blade can minimize the cutting resistance and realize the longer cutting life, the better cutting surface, the less CO2 emission and the longer battery power life. Please use it with steel cutting machines

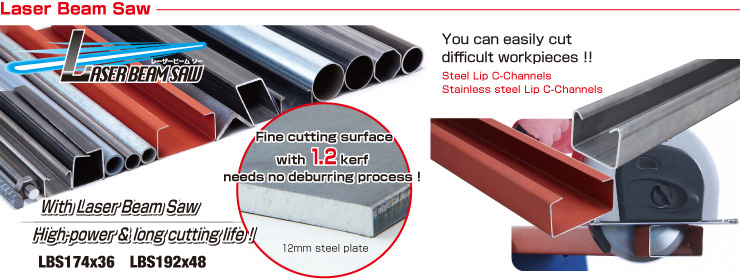

| Applications： | Angles, channels, profiles Round and square, lining pipes, electric cables Small bars such as bolt Light and thin materials such as floor duct, raceway, aluminum sash, hanger rail |
|---|

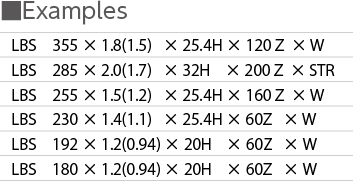

| Item | Diameter (mm) | Kerf (mm) | Central bore (mm) | Number of tooth | Application | |
|---|---|---|---|---|---|---|

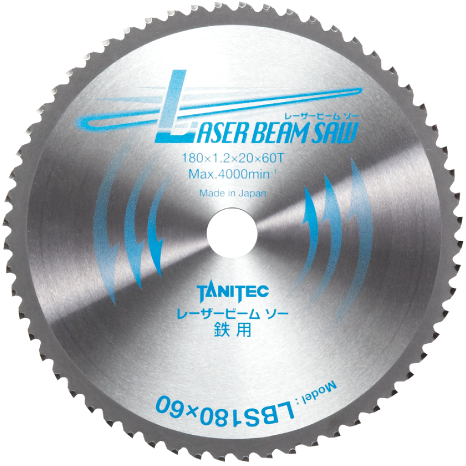

| LBS180×36 | 180 | 1.2（0.94） | 20 | 36 | Iron | |
| LBS180×48 | 180 | 1.2（0.94） | 20 | 48 | Iron | |
| LBS180×60 | 180 | 1.2（0.94） | 20 | 60 | Iron | |
| LBS180×60S | 180 | 1.2（0.94） | 20 | 60 | Stainless steel | |
| LBS192×36 | 192 | 1.2（0.94） | 20 | 36 | Iron | |
| LBS192×48 | 192 | 1.2（0.94） | 20 | 48 | Iron | |
| LBS192×60 | 192 | 1.2（0.94） | 20 | 60 | Iron | |
| LBS192×60S | 192 | 1.2（0.94） | 20 | 60 | Stainless steel | |

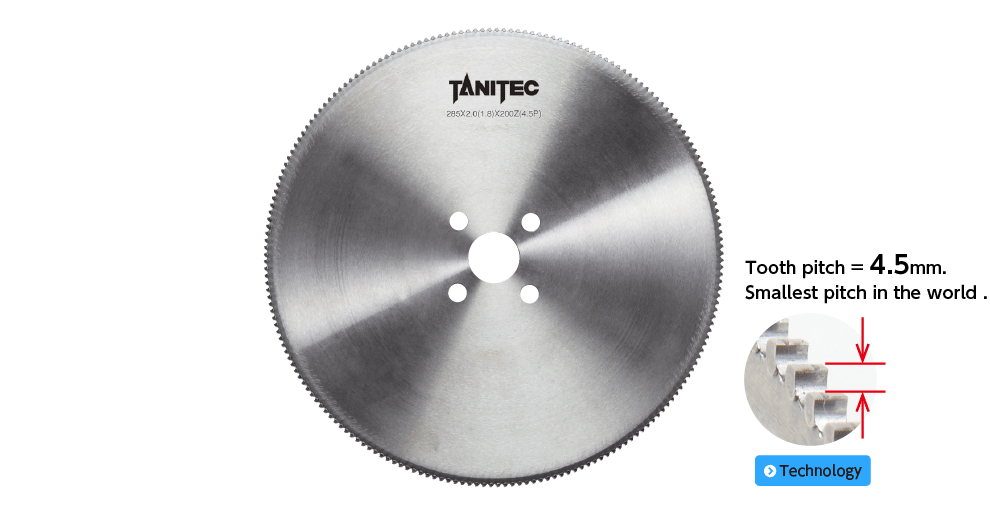

TCT saw blade with Thinnest kerf and Smallest Pitch
Thin and vibrant materials like thin-wall pipe and thin-wall mold materials. Hard materials like high-tensile strength steel pipe which is difficult to be cutby HSS saw blade. Advantages !! The demands for high-tensile strength steels and intricately-shaped steels have been increasing in order to pursue weight saving and attractive design in automobile parts and tube and pipe industries. Therefore, the requests on saw blades are also getting harder than before. LASER BEAM SAW is the solution to these requests.
| Applications: | High-tensile strength steel pipe. Exhaust pipe, Automobile parts, Sash, Frame, Molding...etc. |
|---|
