METAL SAW

HSSメタルソー

HSS Metal Saw

Our standard model, HSS Metal Saw, is used for cutting of general materials such as normal steels, carbon steels and so on. TANITEC adopted the special surface treatment at first time in Japan that makes a layer of iron oxide (Fe3O4) to the blade surface. It enhances not only lubrication oil to be cooling-off, also the protection from depositing chips to the blade tooth, and it is successful in the improvement of the cutting life.

MSSメタルソー

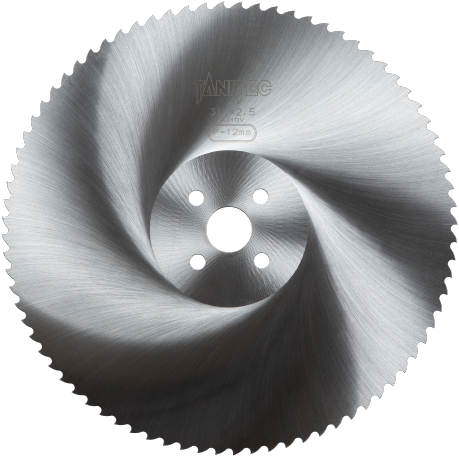

MSS Metal Saw

MSS Metal Saw, High Speed Steel cold saw, is coated with Chromium and Nickel by our special technology. The special coating prevents it from rusting, wearing and depositing of the chips on the blade tooth, therefore, MSS Metal Saw is better at cutting of alloy tool steel or special steel even stainless steel which is very tough to be cut.

TiNメタルソー

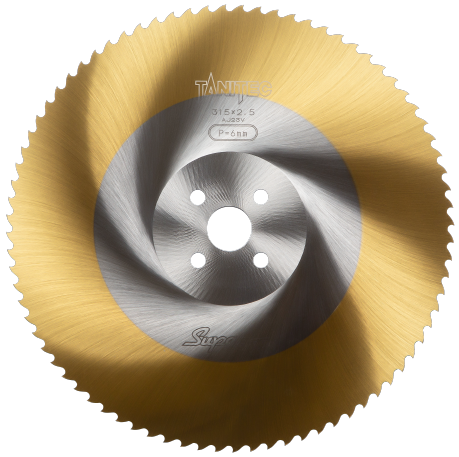

TiN Metal Saw

TiN Metal Saw is coated with titanium and nitrogen compound by ionic plating process. The hardness of blade surface can reach from HV2000 to 2500. The coating helps not only for its excellent abrasion resistance also for minimizing the chips deposition on the blade teeth.

ナイスショット

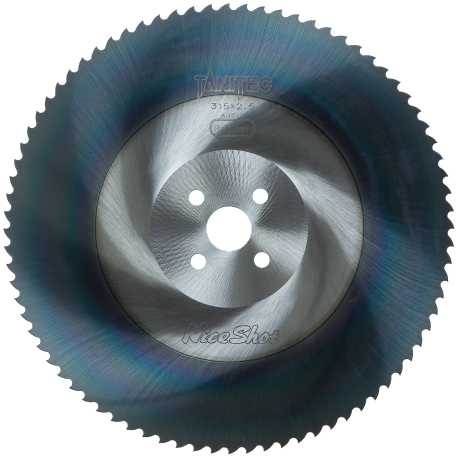

Nice Shot

The chromium coating reduces frictional coefficient and improves slip factor against cut material. The coating also prevents the metal from depositing and seizing the teeth and makes a beautiful cutting surface. Besides it has approx. twice of tool life, compared with our HSS coated blade saw. Best shot has great effects for automotive parts, machinery parts such as chromium steel, chromium molybdenum and stainless steel which is easily deposited and seized to the teeth.

■ Size and pitch chart

Type Pipe
Material Iron・stainless steel Maximum cutting
size
size Under2 2～3 4 5～6 6～8 8～9
pitch 3 4 5 6 8 10
Saw size 250 260 200 160 120 100 80 φ75・70×70
280 280 220 180 140 110 90 φ75・70×70
300 300 220 180 160 120 90 φ90・70×70
315 320 240 180 160 120 110 φ90・70×70
350 360 280 220 180 140 110 φ115・100×100
360 360 280 220 180 140 110 φ115・100×100
370 360 280 220 180 140 110 φ115・100×100
385（380） 400 300 240 200 140 110 φ120・110×100
400 - 300 240 200 160 120 φ120・110×100
420 - 320 260 220 160 120 φ120・110×100
450 - 340 280 220 180 140 φ150・150×100
Type Flat bar
Material Iron・stainless steel Maximum cutting
size
size Under3 4～5 6～15 16～20 20～40 40～55 55～70 70～80
pitch 3 4 5 6 8 10 14 16
Saw size 250 260 200 160 120 100 - - - 70×20
280 280 220 180 140 110 - - - 70×20
300 300 220 180 160 120 - - - 125×25
315 320 240 180 160 120 - - - 125×25
350 360 280 220 180 140 110 80 - 160×60
360 360 280 220 180 140 110 80 70 160×60
370 360 280 220 180 140 110 80 70 160×60
385（380） 400 300 240 200 140 110 90 70 160×60
400 - 300 240 200 160 120 90 80 200×70
420 - 320 260 220 160 120 90 80 200×70
450 - 340 280 220 180 140 100 90 200×80
Type Angle
Material Iron・stainless steel Maximum cutting
size
size Under2 2～3 3～4 4～6 6～8 8～9
pitch 3 4 5 6 8 10
Saw size 250 260 200 160 120 100 80 70×70
280 280 220 180 140 110 90 70×70
300 300 220 180 160 120 90 90×70
315 320 240 180 160 120 100 90×70
350 360 280 220 180 140 110 100×100
360 360 280 220 180 140 110 100×100
370 360 280 220 180 140 110 100×100
385（380） 400 300 240 200 140 110 100×100
400 - 300 240 200 160 120 120×100
420 - 320 260 220 160 120 120×100
450 - 340 280 220 180 140 150×100
Type Solid
Material Iron・stainless steel Maximum cutting
size
size Under20 20～30 30～50 50～60 60～70 70～80 80～100 100～120
pitch 6 8 10 12 14 16 18 20
Saw size 250 120 100 80 - - - - - 50
280 140 110 90 70 64 - - - 70
300 160 120 90 80 70 - - - 70
315 160 120 100 80 70 - - - 70
350 180 140 110 90 80 60 - - 80
360 180 140 110 90 80 70 - - 80
370 180 140 110 100 80 70 - - 80
385（380） 200 140 110 100 90 70 - - 80
400 200 160 120 100 90 80 70 - 100
420 220 160 120 110 90 80 70 - 100
450 220 180 140 110 100 90 80 70 120
